IP67 Spring Cable SAE J1772 Type 1 to Type 2 EV Charging Cable for Mode 3 Charging

Brand : ANS

Stardard : IEC 62196-2

Color : black&grey

Brand Name : ANS

Model Number : ANSAG-T2-T2-32-ST

Certification : TUV

Place of Origin : china

MOQ : 1

Payment Terms : L/C,T/T,Western Union

Supply Ability : 100000PCS/month

Delivery Time : 20-30days

Packaging Details : 15.7*15*3.15(in)

Protection level : IP67

Certifications : TUV

Warranty : 2years

Material : TPU

Product name : 32A Type 1 to Type 2 EV Charging Cable

Rated Current : 32A

Contact Now

Product Overview

32A Spring Cable SAE J1772 to IEC 62196-2 EV Plug Connector — Type 1 to Type 2 EV Charging Cable. Designed for reliable, high-performance charging with a durable spring cable and ergonomic connectors.

Input & Output Specifications

Input / Output Voltage	100~250V AC	Max. Output Current	32A, 1 Phase
Input Frequency	47~63Hz	Charging Interface Type	Type 1 – Type 2
Max. Output Power	7kW

Protection Features

Over Voltage Protection	Yes	Earth Leakage Protection	Yes
Under Voltage Protection	Yes	Over-Temp Protection	Yes
Over Load Protection	Yes	Lightning Protection	Yes
Short Circuit Protection	Yes

Function & Accessories

Ethernet / WiFi / 4G / Bluetooth	No	Cable Gauge	36 + 20.5mm²
Plug Type	Type 1 – Type 2, Male & Female	Plug Material	Thermoplastics
Length	5 meters or customization	Cable Material	TPU

Working Environment

Waterproof Protection Degree	IP55	Maximum Altitude	<2000m
Environment Temperature	-40℃ ~ +50℃	Cooling	Natural Air Cooling
Relative Humidity	0–95% non-condensing	Standby Power Consumption	<8W

Package Information

Dimension (W/H/D)	40 / 38 / 8 cm	Weight	4 KG
Certificate	CE, TUV

Product Detail & Features

Key Features of Type 1 – Type 2 EV Charging Cables

Mechanical life: unloading and inserting >10,000 times
Impact resistance: 1m height drop and 2 tons vehicle overpressure operation
Insulation resistance: >1000Ω (DC500V)
Withstanding voltage: 2500V
Contact impedance: 0.5mΩ Max
Pin temperature rise: <50K
EV charging cable with charging plug and connector, Type 1 to Type 2, 1 phase
Vehicle side (EV): 32A 1-phase Type 1 Connector, screw type, for charging your EV up to 7.2 kW
Infrastructure side (EVCS): 32A 1-phase Type 2 charging plug
Compliance standard: IEC/EN 62196-1/2:2016
Attractive, ergonomic hand-held design for easy plugging and unplugging
Working length of 5 m, made of thermoplastic material. Protection class IP55, flame retardant, pressure, wear and impact resistant

Product Images

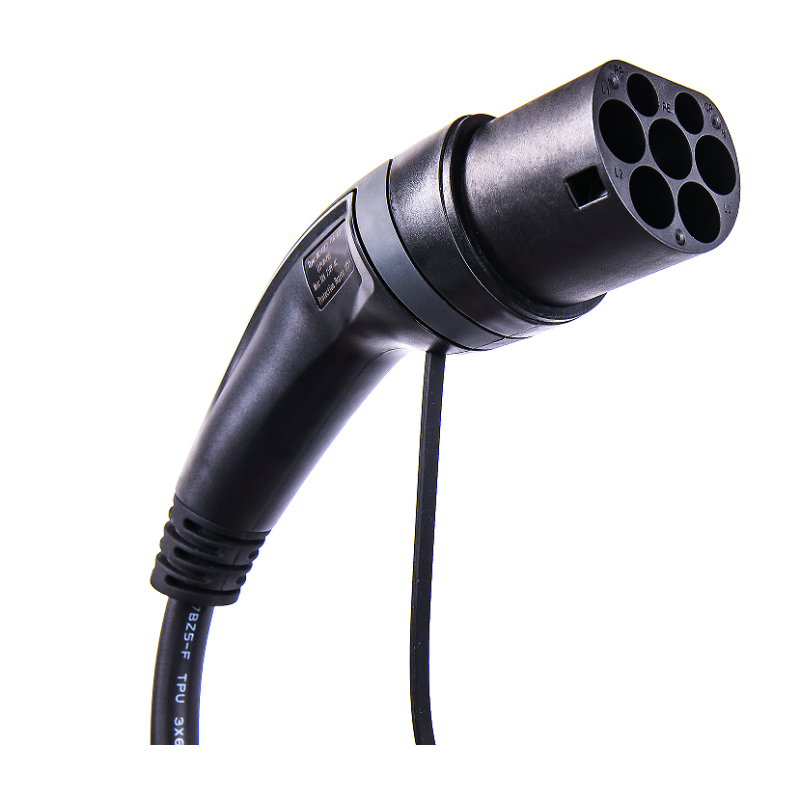

IP67 Spring Cable SAE J1772 Type 1 to Type 2 EV Charging Cable for Mode 3 Charging
